San Modesto shading system

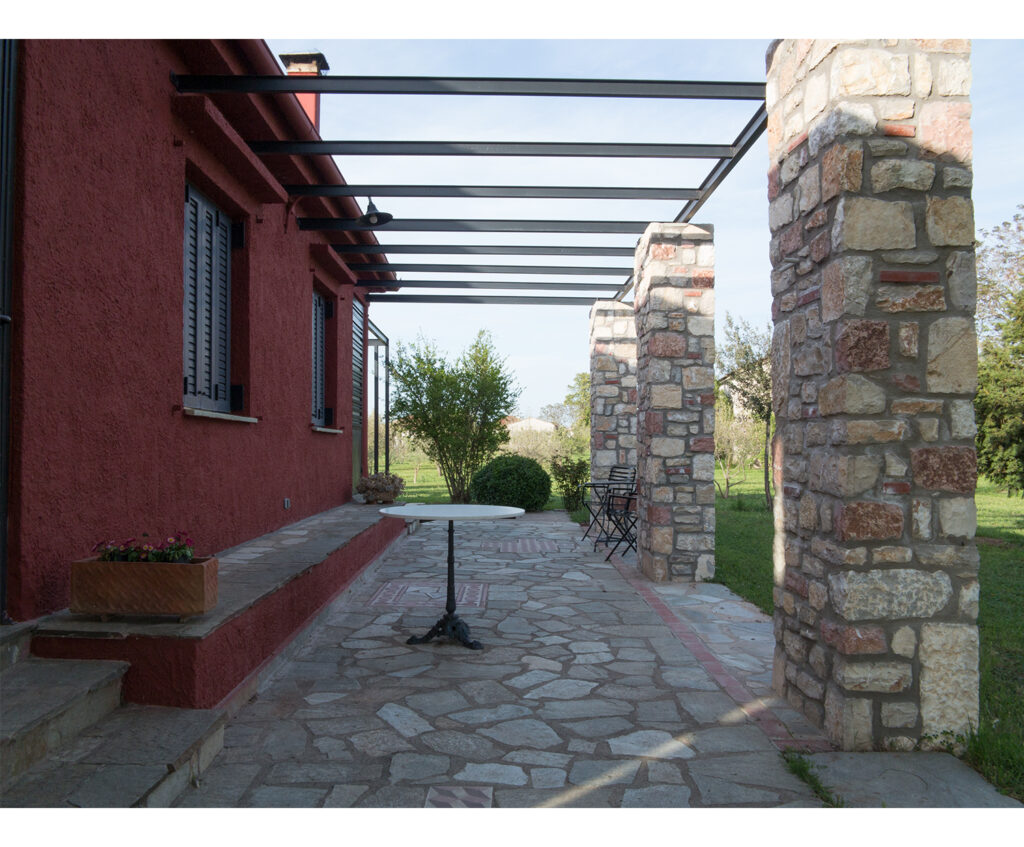

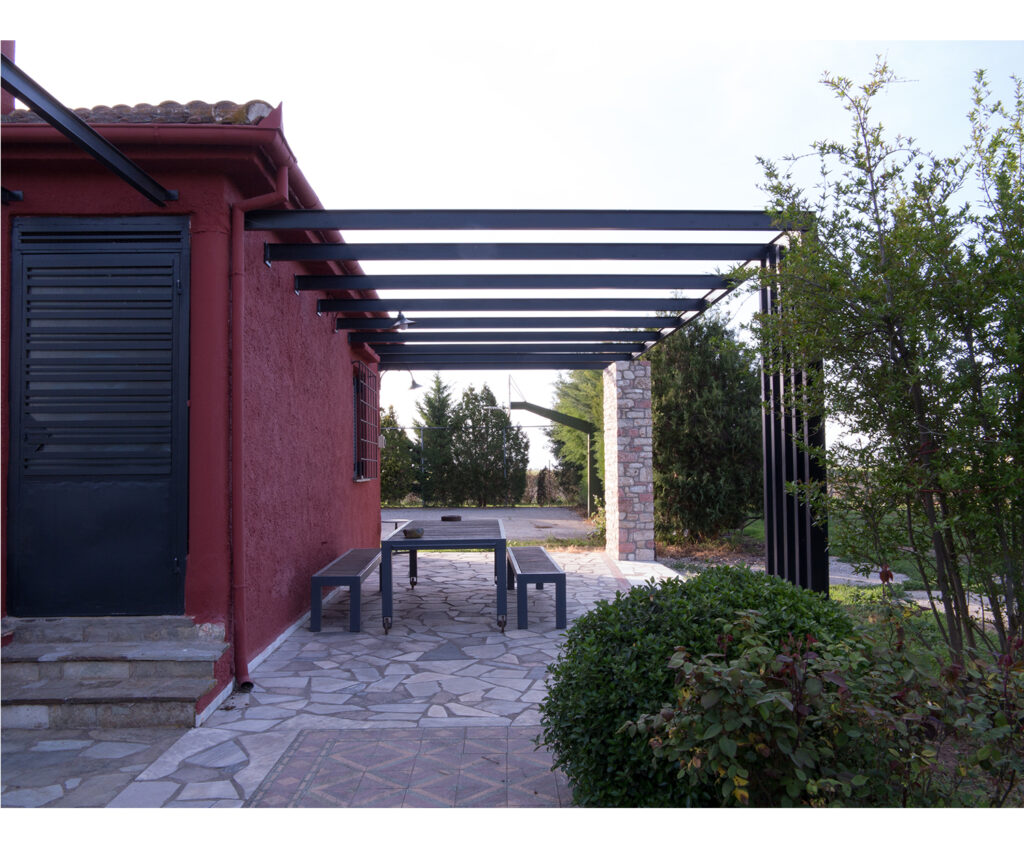

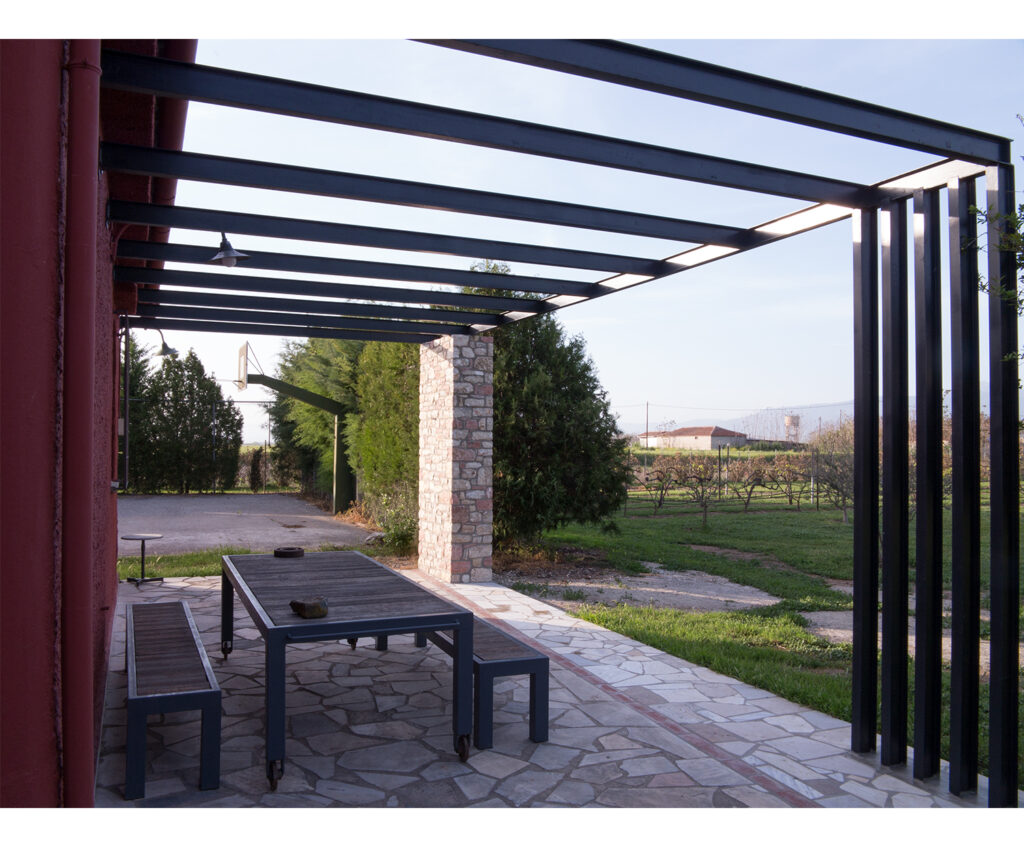

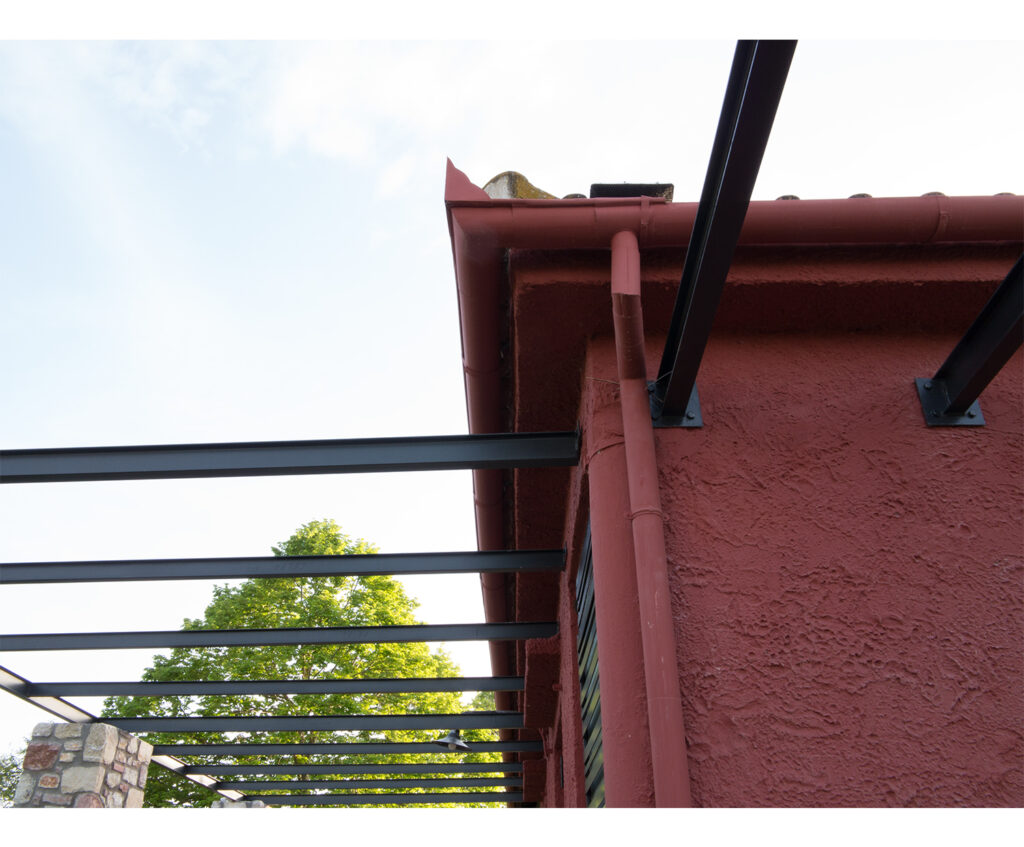

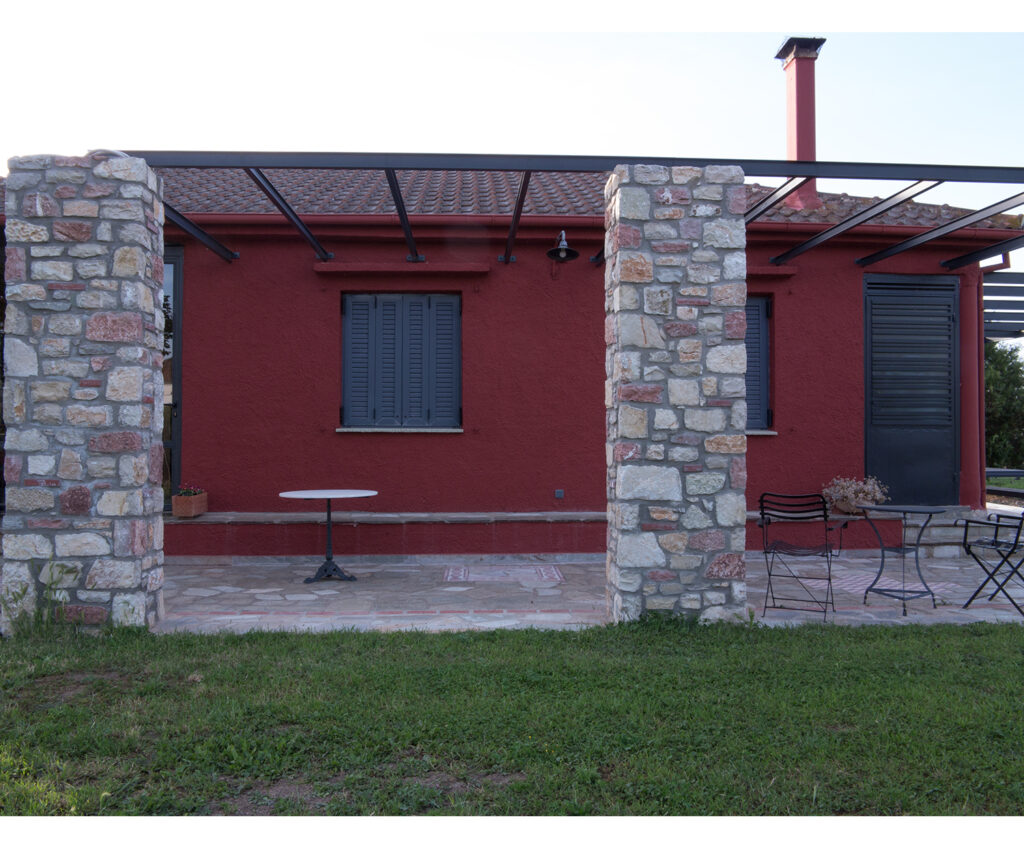

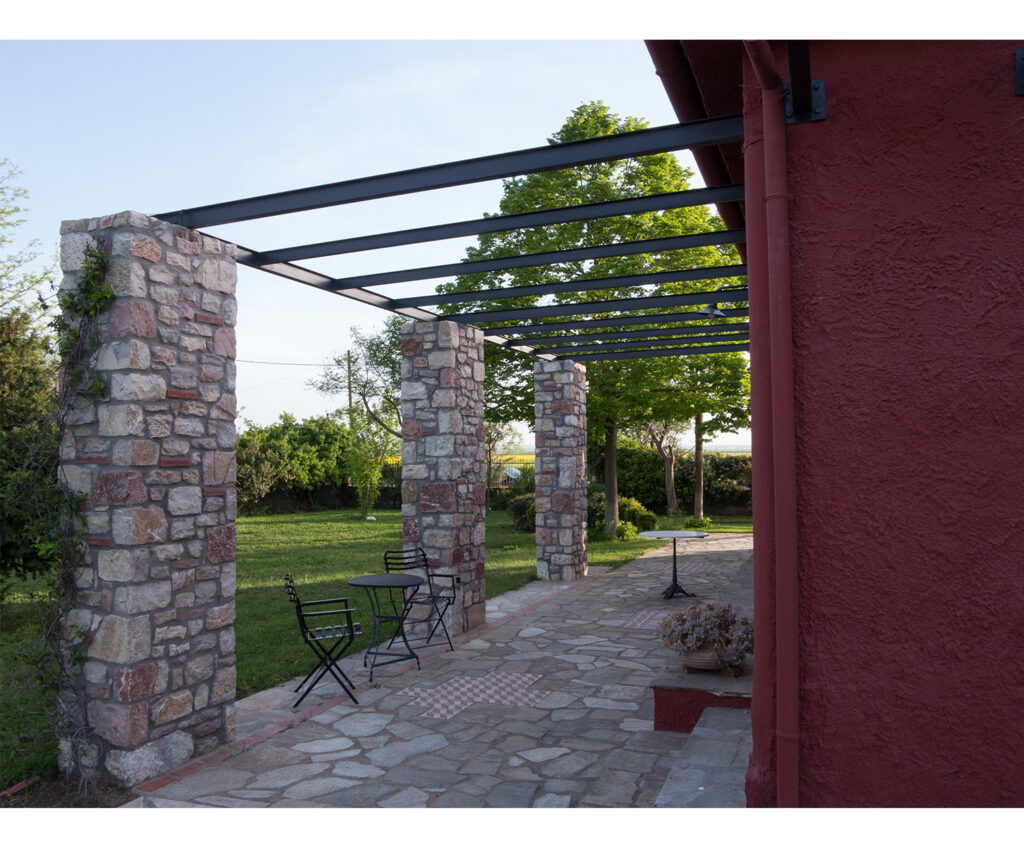

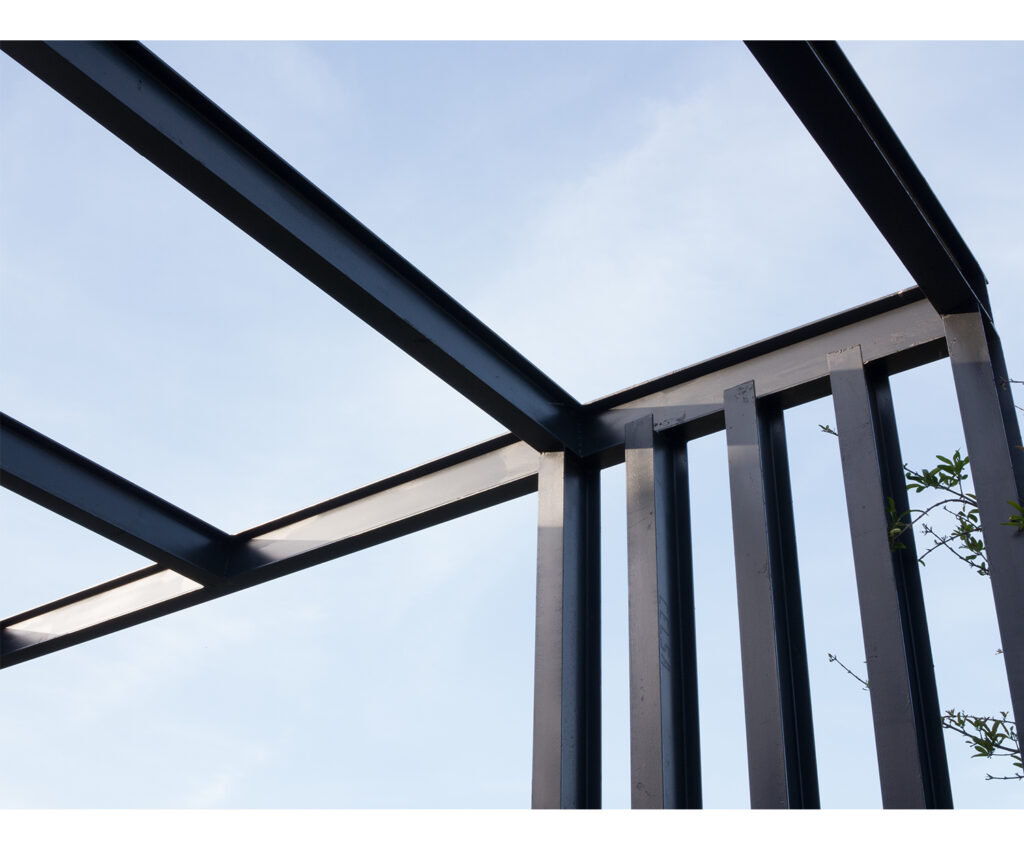

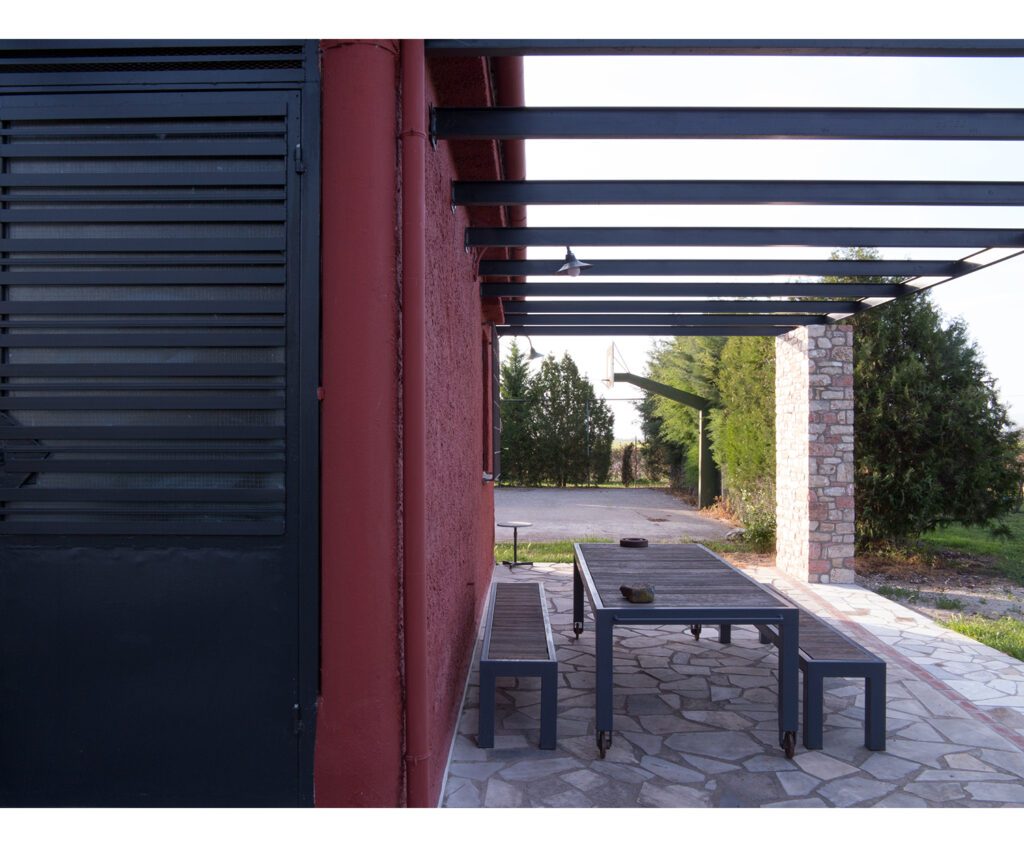

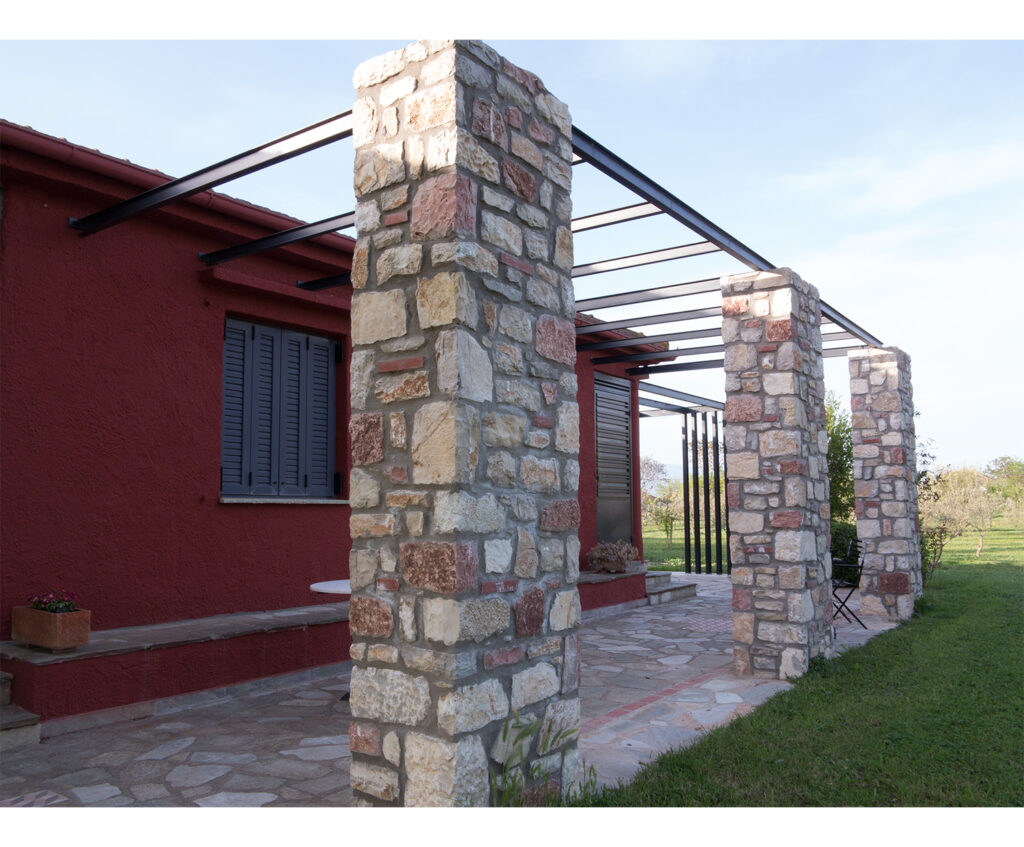

An architectural addition whose objective was to create a strong bond with the existing detached farmhouse and become incorporated into its designated surrounding area . The initial idea was to create a structure that would create a feeling of an extended terrace that would overlook the adjacent grove that is connected to the garden and in the future act as a shading system with the necessary addition of wooden panels . The client wanted to add something of a traditional element to the existing house which was built in the 1960s and has a characteristic monovolumic layout and combine it with more contemporary elements such as H shaped beams. A cost – effective and eco friendly approach was a must so a solution that would combine both had to be reached . After looking for within an area of a radius of 10 km of the site , a demolished stone house was discovered and the necessary arrangements were made in order for the stones to be carried to the building site . Materials that didn’t require transportation or production added to the environmental – friendly orientation of the construction. The lime stone that was retrieved was used to create four pillars with cement reinforcements covering two sides of the house and creating an L shape corridor that at its peak is vacant, leaving room for great vistas to the garden and the grove. In order to create the shading frame that sits atop of the stone columns two frames of H shape metal beams were used. This resulted in a wide perspective viewing angle enriching the sense of freedom and openness whilst offering a shelter like feeling at the same time. Depending on the time of the day and the position of the sun an impressive shadow play is created along both sides of the L shaped shading system . The side which hosts the three pillars feels more cozy and protected in conjunction with the built in bench that runs almost through the entire main facade of the house. This side is more suitable for the mid-moon hours according to the study of the sun’s position whereas the shorter side is more suitable for afternoon hours. On the shorter side there are two pillars ,one that is made of stone and is wider than the other three for stability reasons and another one that is comprised of 5 vertical H shaped metal columns that are welded to the elongated beam that connects them with the adjacent stone pillar. There a balance was achieved by not adding that much of material as on the other side and hence acting as a soft transition between the two sides . On the narrower side a custom made metal table along with a bench , compliment the setting of the space that overlooks the grove . The large opening between the pillars allows for great views to the grove and the horizon . Upon completion a solid combination between the existing house and the new additions arose . An aggregate of volumes that are interconnected and communicate in perfect order with each other and present themselves as a solid unit .
